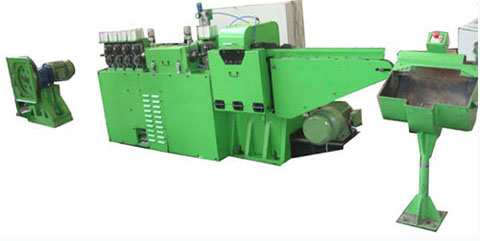

Wire Straightening & Cutting Machine

Wire Straightening & Cutting Machine

UNIK makes Wire Straightening & Cutting machines especially designed for the Welding Electrodes production. These machines are built on a very strong base that the life is enhanced. These machines provide trouble free service for many years, with proper preventive maintenance.. :

Specifications :

Diameters that can cut 1.6mm, 2mm, 2.5mm, 3.2mm, 4mm & 5mm.
Lengths that can be cut 300mm, 350mm, 400mm & 450mm.
Straightening method using a high speed spinner.
Cutting method using a flying shear, without wire stopping.
No of cuts per minute 480 cuts of 3.2mm X 350mm length for reference. Other diameter & lengths on request.
Pay-off Stationary pay-off for DIN1000 bobbin or wire coils.
Auxiliary feeder Provided.
Wire collection in a wire basket. To be removed manually & collected in a metal stand.
Accuracy in length +/- 1mm.

Speed of auxiliary feeder, main feeder, cutter, spinner & ejector motors are all synchronized. They vary automatically based on the input given in the HMI namely

  • Diameter of the wire
  • Length of cut wire
  • Pieces per minute
